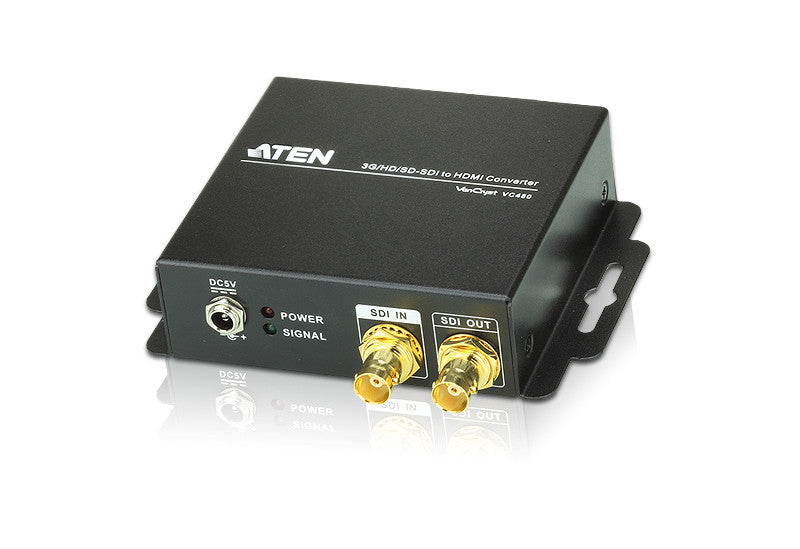

Aten VC480 converter 3G/HD/SD-SDI to HDMI,audio,scaler

Confirm stock and delivery fee before payment.

• Converts an 3G/HD/SD-SDI input signal to HDMI formats in
  real time while avoiding transformation loss for both audio
  and video signals
• Supports additional analog stereo audio and coaxial digital
  audio
• HDMI (Deep Color)
• LED indication of power and signal status
• Supports an SDI distance of up to 90M (3G-SDI), 150M
  (HDSDI)
• or 300M (SD-SDI) of RG6
• Supported SDI formats:
  SD-SDI (SMPTE 259M, up to 270Mbps)
• HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
• 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)
• Video Support:
  525i@59.96, 625i@50
• 720p@23.98/24/25/29.94/30/50/59.94/60
• 1080i@50/59.94/60
• 1080p@23.97/24/25/29.97/30/50/59.94/60
• Buffered loop-through output provides extended monitoring
• Supports 8 audio channels @48kHz rate
• Features automatic detection of 3G/HD/SD-SDI signals
• Relocking SDI signals for cascading and thus longer
  transmission
• Locking power connector for secure communications

1x VC480 3G/HD/SD-SDI to HDMI Converter
1x Power Adapter
1x User Instructions

VC480-Aten 3G-SDI to HDMI/Audio Converter Datasheet.
