Epson Rewinder for Epson C6500 or Afinia L502
Epson Rewinder for Epson C6500 or Afinia L502
Couldn't load pickup availability

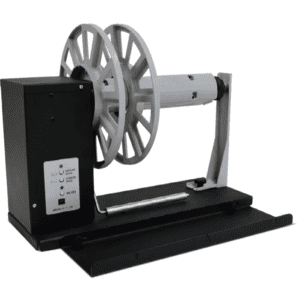

The Roll-to-Roll system specifically designed for Epson C6500A colour label printer can handle rolls up to 220mm (8.66″) media wide and having an outside diameter up to 250mm (10″). Both Unwinder and Rewinder are equipped with a fixed 3″ core holder.
An external power supply 100/240VAC – 2.5A at 24V allows an electronic circuit to provide, through the tension arm, the automatic adjustment of the rotation direction and speed.
Through two buttons on the control panel, it is possible to increase or decrease the rotation speed of the units. The control panel allows to set also the label rewinding face-in or face-out option.
For the heavy label rolls, our label unwinder and label rewinder have a “L” support included. Easy to add or remove with a knob, it gives much more stability to the core holder.
LABEL REWINDER
Used to rewind automatically face-in or face-out the printed labels.
The position of the tension arm is calibrated as follows:
– When the printer forwards the printed media, the tension arm goes down, the device rewinds the media.
– When the tension arm is in the middle position, the device is idle.
– When the printer pulls back the media, the tension arm goes up, the device unwinds it.
RW6500A
Roll diameter up to 250mm (10″)
Media width up to 220mm (8.66″)
3″ Fixed core holder for 6000A printer.
