RGBlink Mini-ISO

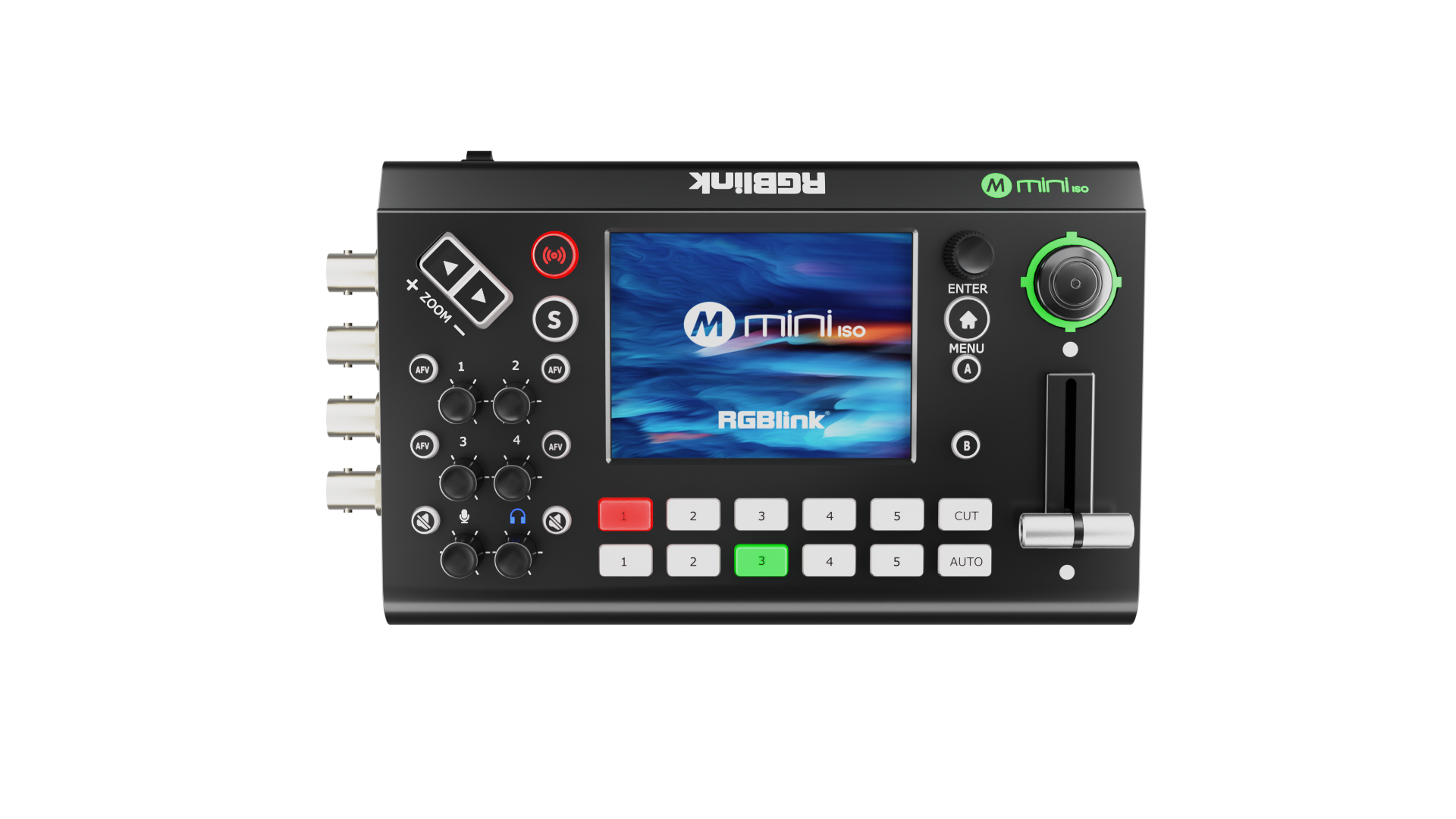

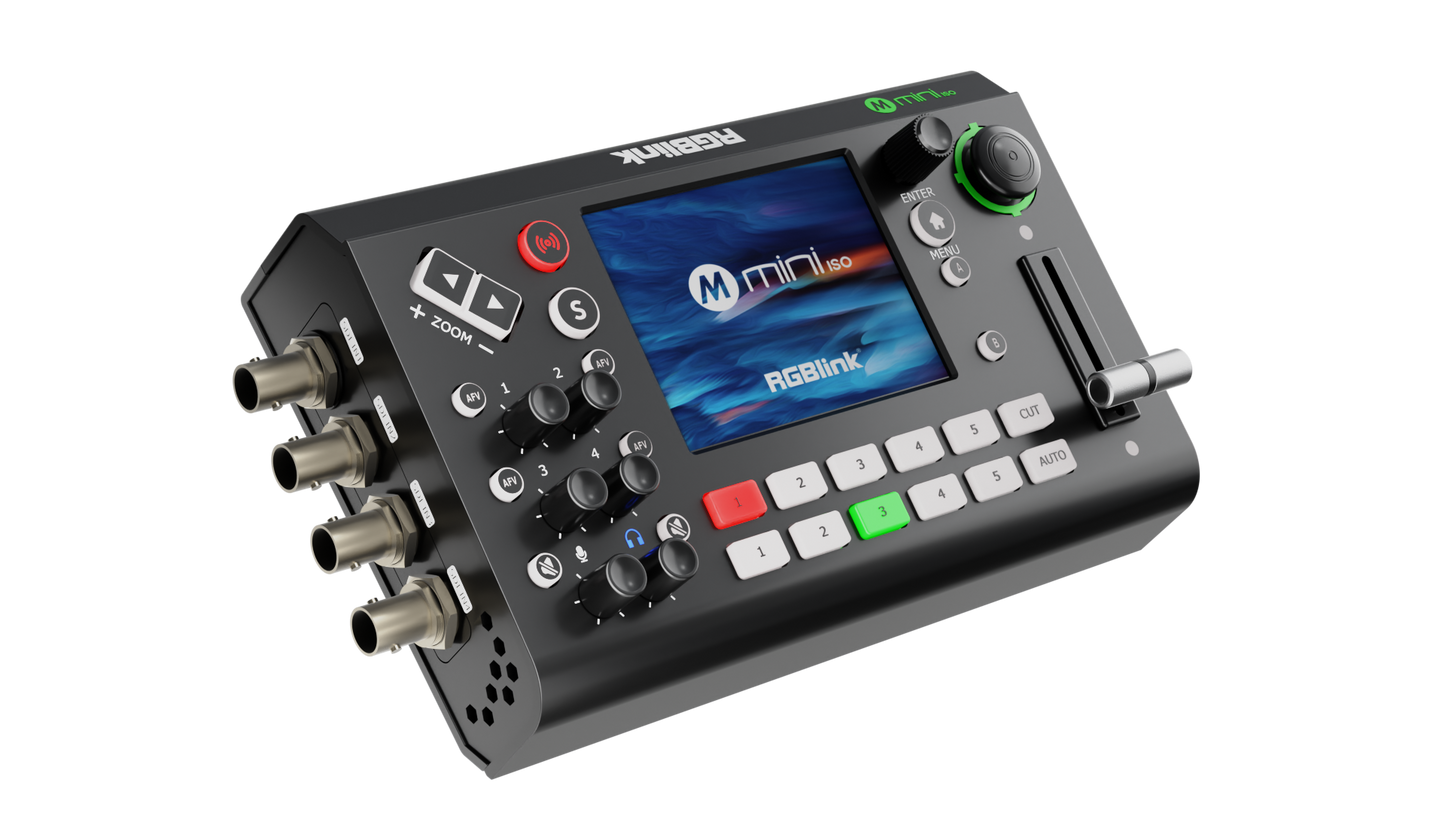

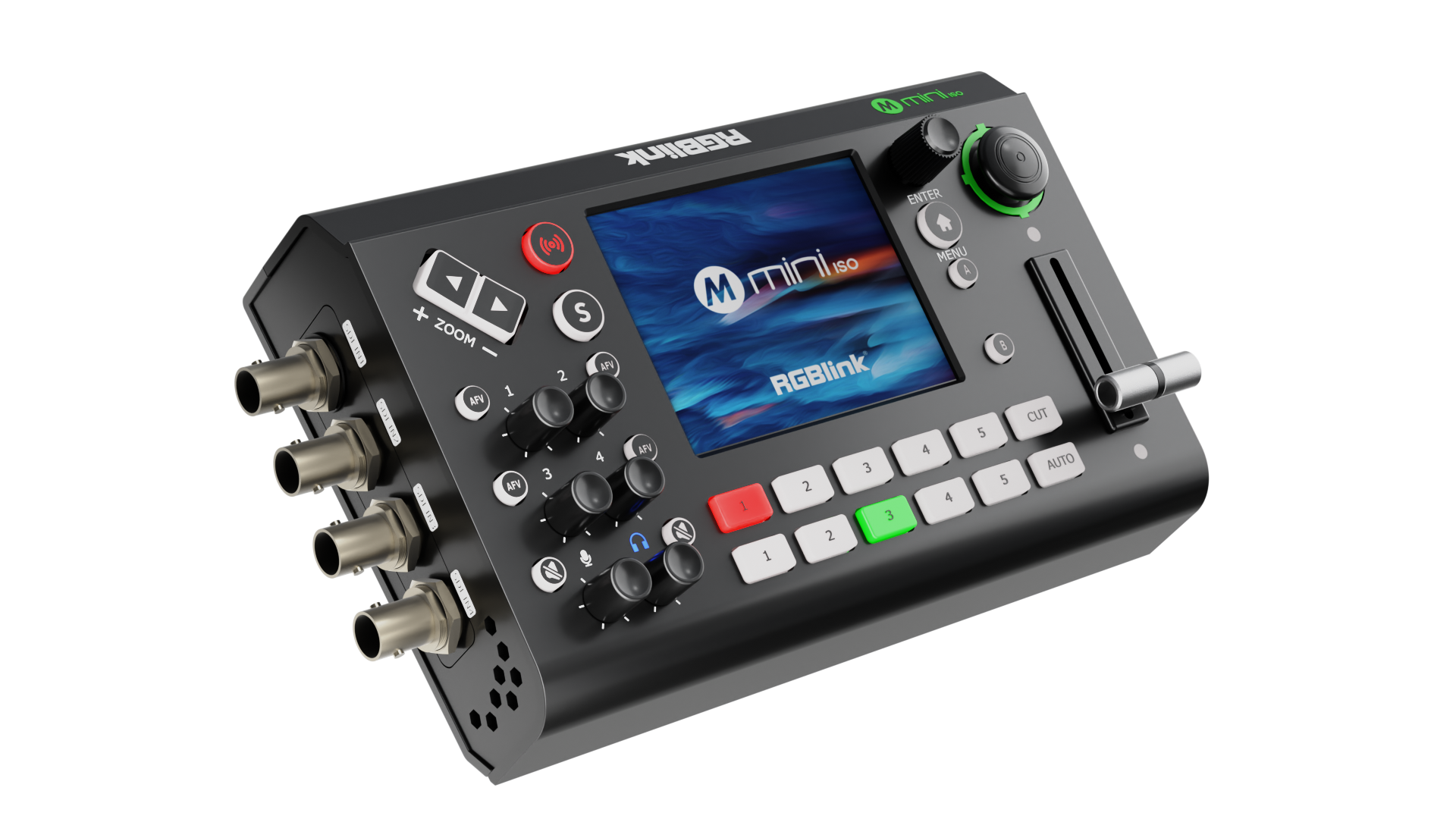

The Mini-ISO is a comprehensive live broadcast and recording director console, equipped with nine video inputs, two audio inputs, and various output interfaces. It supports multiple layers and mixing control, making it ideal for leasing, broadcasting, multi-platform live streaming, remote audio and video conferencing, and a range of live events such as stage productions, educational activities, press conferences, and sports events. It offers excellent cost performance while delivering high-quality functions. The console features an onboard 4-inch HD full-color screen that monitors all input channels and output images in real-time.

A full-featured keyboard allows rapid control of any function, eliminating the need for multiple separate control panels for video and camera control. The Mini-ISO consolidates these functions, supporting the industry-standard VISCA protocol for PTZ camera control directly from the mixer. It can control up to four separate cameras with pan, tilt, zoom, and focus capabilities. An integrated joystick provides tactile control over each PTZ camera, with the ability to toggle, pan, tilt, zoom, and focus from the front panel. The joystick and toggle are also dynamically assigned to settings such as scale, position, and crop, enhancing usability.

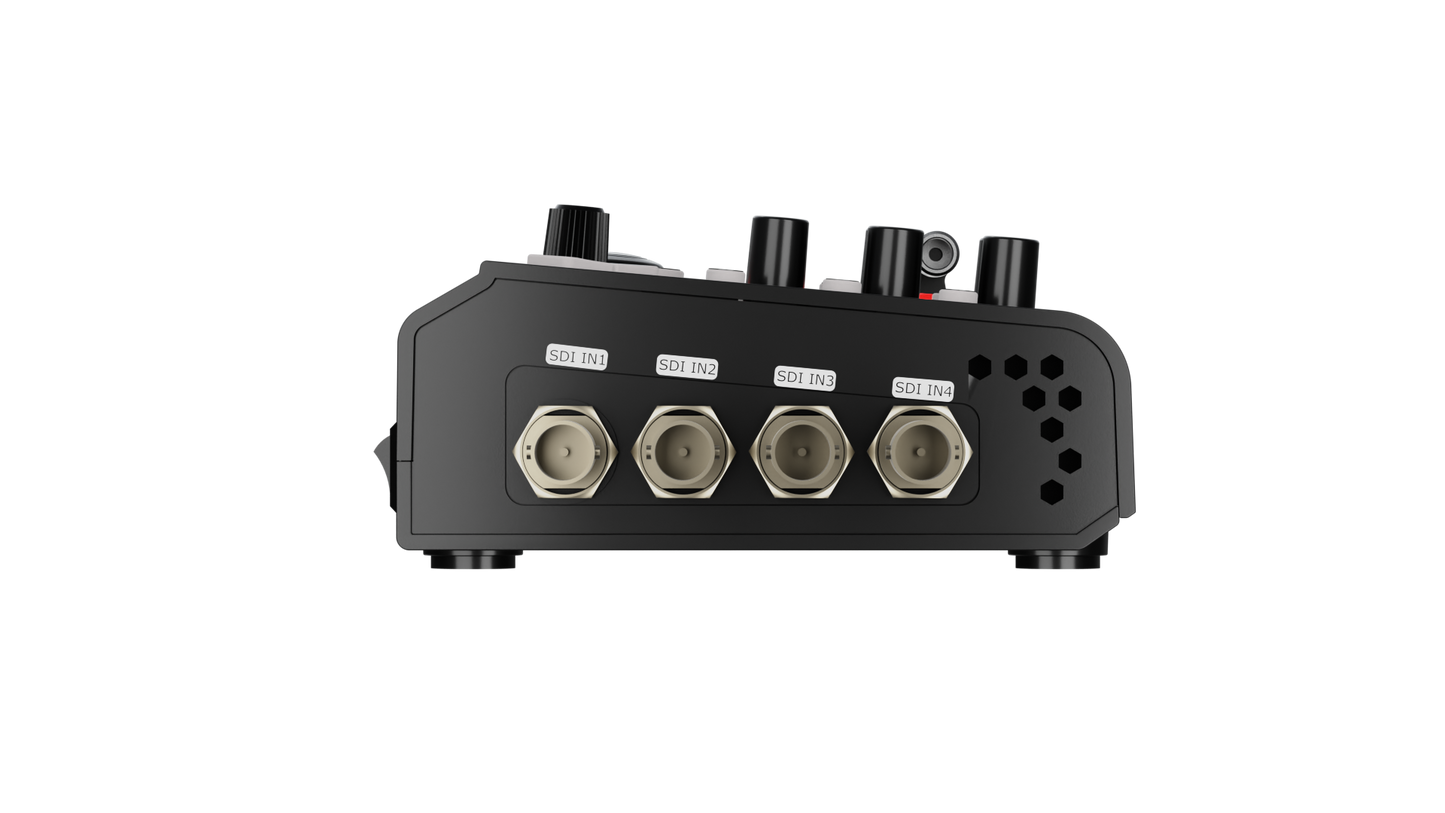

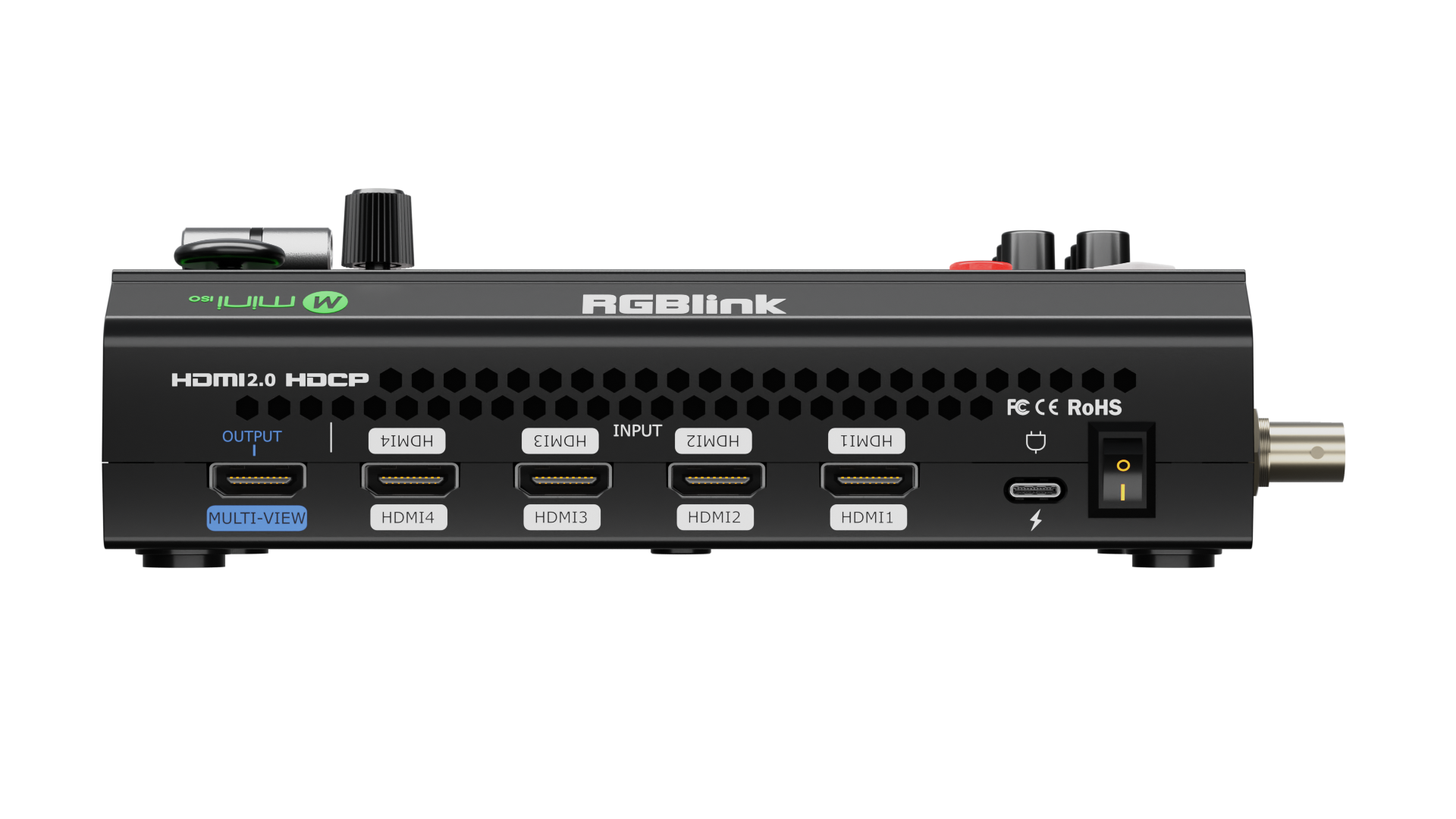

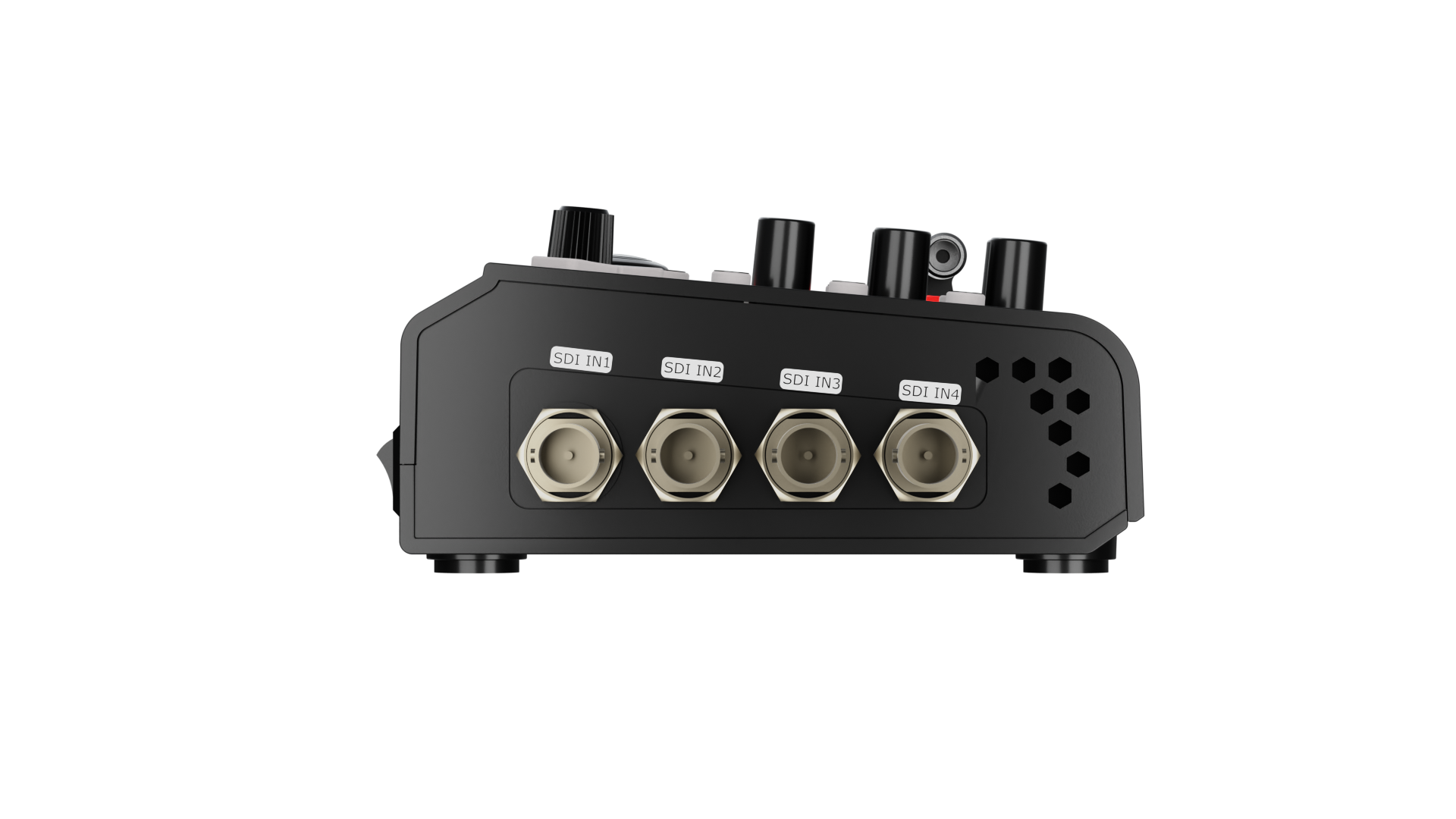

The Mini-ISO boasts a longer transmission distance and professional broadcast SDI camera input, enabling presenters to appear in virtual studios and environments using Chroma Key. Users can select from standard key colors and activate Chroma Key directly on the Mini-ISO without the need for an app, refining color selection and tolerances from the touchscreen to optimize the effect. Supporting six audio inputs, the Mini-ISO includes four HDMI 2.0 embedded digital audio inputs, one Type-C external input via a USB 2.0 port, and two external analog audio inputs, which consist of one Line (3.5mm connector) input and one Bluetooth audio input. The six audio inputs support mixing outputs between any and all channels. The Auto Follow Video (AFV) feature can be set for any HDMI embedded audio, so the audio automatically switches with the video source to Preview (PVW) and Program (PGM). Additionally, users can configure audio delay for MIC inputs or camera audio to ensure synchronization.

RGBlink Mini-ISO Datasheet
